Architecture

The gateway is the boundary between the OCaml rollup and Ethereum. It presents Mina-shaped reads and mutations to the sequencer while translating accepted commits into proof jobs and canonical Ethereum state.

                                      +--------------------+
 users -> Zeko sequencer ------------>| 2-of-3 multisig DA |
              |                       +--------------------+
              +---- RabbitMQ ----> OCaml Pickles prover
              |                              |
              | sendZkapp + proof export     |
              v                              v
        +---------------- Zeko Ethereum gateway ----------------+
        | Mina GraphQL façade | PostgreSQL | canonical indexer   |
        | native/zkVM checks  | approval   | proof/submission    |
        +-------------------------+------------------------------+
                                  |
                         Succinct Groth16 proof
                                  |
                                  v
                     +------------------------------------+
 Ethereum users ---->| bridge proxy <-> settlement proxy |
                     |       |                            |
                     |       +--> registry module         |
                     +------------------------------------+

Component ownership

Component	Owns	Does not own
OCaml sequencer/prover	Transaction ordering, ledger transition, Pickles proof, action semantics, multisig DA writes.	Ethereum custody or SP1 request policy.
Gateway	Compatibility API, job persistence, pinned native Pickles validation for settlements, zkVM checks for other guests, proof approval, transaction submission, Ethereum-derived views.	Zeko ledger semantics or a trusted stateAfter.
Settlement guest	Complete Pickles verification and proof-bound receipt derivation.	Ethereum continuity or finality.
Bridge guest	Deposit accumulator replay and exact Poseidon outer actions.	Which logs are canonical; the gateway supplies only finalized contiguous logs.
Settlement contract	SP1 verification, outer-state continuity, action checkpoints, virtual slot, V2 inner root, and V3/V4 registry attestations.	Pickles internals or L2 transaction execution.
Bridge contract	ETH/ERC-20 custody, deposit accumulator, bridge proof acceptance, withdrawal delay/cursors, and claim transfer.	L2 ledger or user-generated withdrawal proving.
Asset registry module	Dense proposals, proof-settled activation, and operational asset status through namespaced bridge-proxy storage.	Custody or an independent proxy/storage layout.

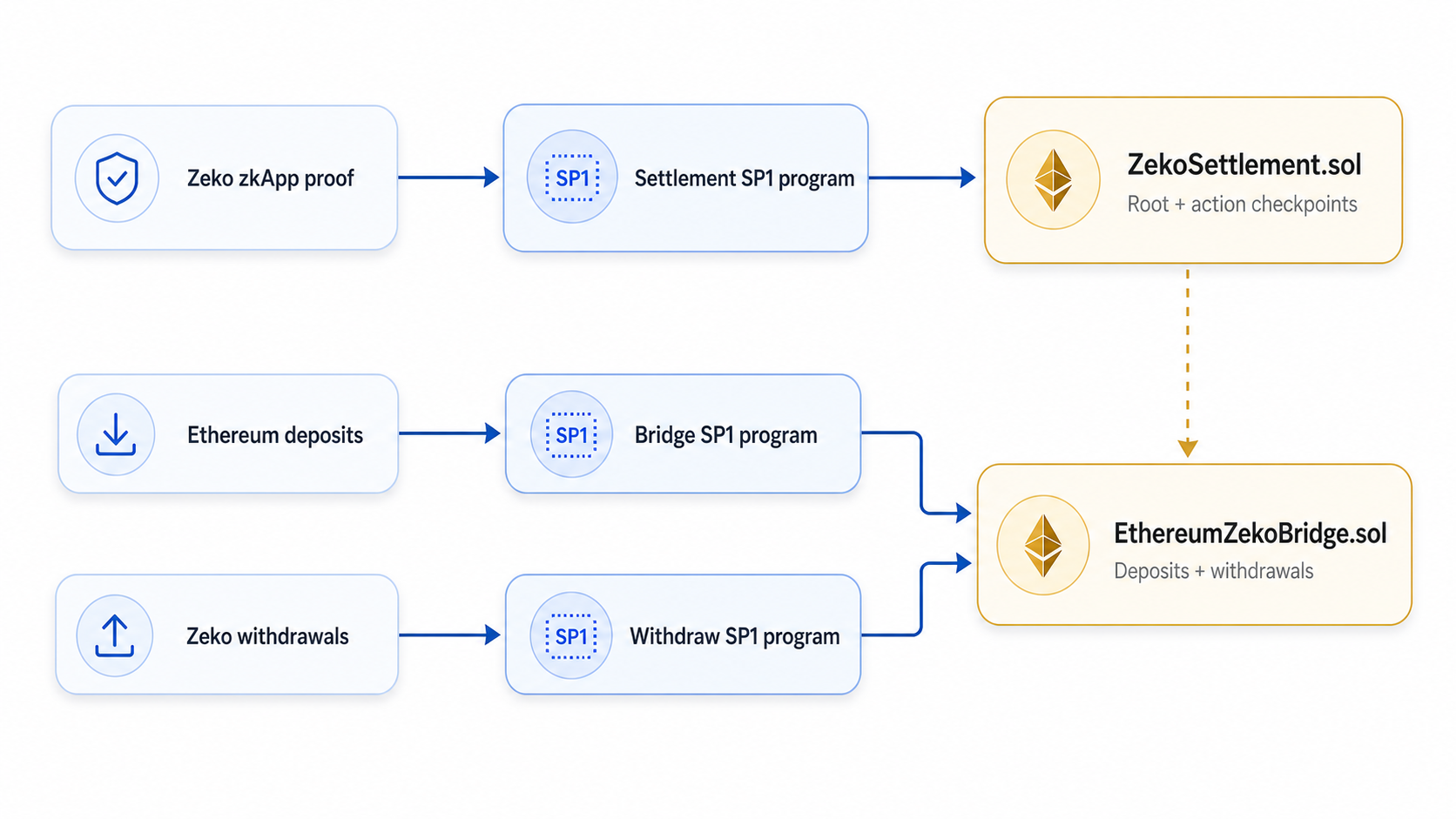

Two directions of action flow

Zeko's outer account is the L1-facing side of the rollup and the inner account is the L2-facing side.

• Ethereum-to-Zeko messages become outer Witness actions. The bridge proof appends them to the settlement contract's outer action checkpoint. They only become usable deposits after a later Pickles-proven commit synchronizes that checkpoint into the inner state.
• Zeko-to-Ethereum messages are inner Witness actions. The settlement guest proves their ordered transition and commits a Keccak root. The bridge releases ETH or the bound ERC-20 only for leaves under that settlement-bound root after delay.

Serialized state writers

Bridge batches and sequencer settlements both advance the same outer action state. The gateway therefore permits only one of them to validate, prove, or submit at a time. Multiple settlements may wait in order, but Ethereum context is assigned only when the worker claims a job after the previous writer is confirmed.

This prevents paying for two proofs that both commit to the same starting batch or action state.

Canonical indexing and reorgs

The gateway records Ethereum blocks, proof submissions, virtual Mina account snapshots, outer actions, bridge deposits, and inner-action leaves in PostgreSQL. A job becomes confirmed only when its receipt block reaches the Ethereum JSON-RPC finalized head.

If a canonical block is replaced, the indexer restores the prior account and action view, returns the affected command to the pending pool, and requeues the existing paid proof request. It does not buy a second proof for the same input.

Data availability boundary

For this milestone, the normal Zeko multisig DA stack remains in place with three retained nodes and quorum two. Ethereum does not receive the full batch payload. Blob publication, blobhash checks, archival, and an equivalence proof between blob commitments and the Zeko batch root are future production work.
